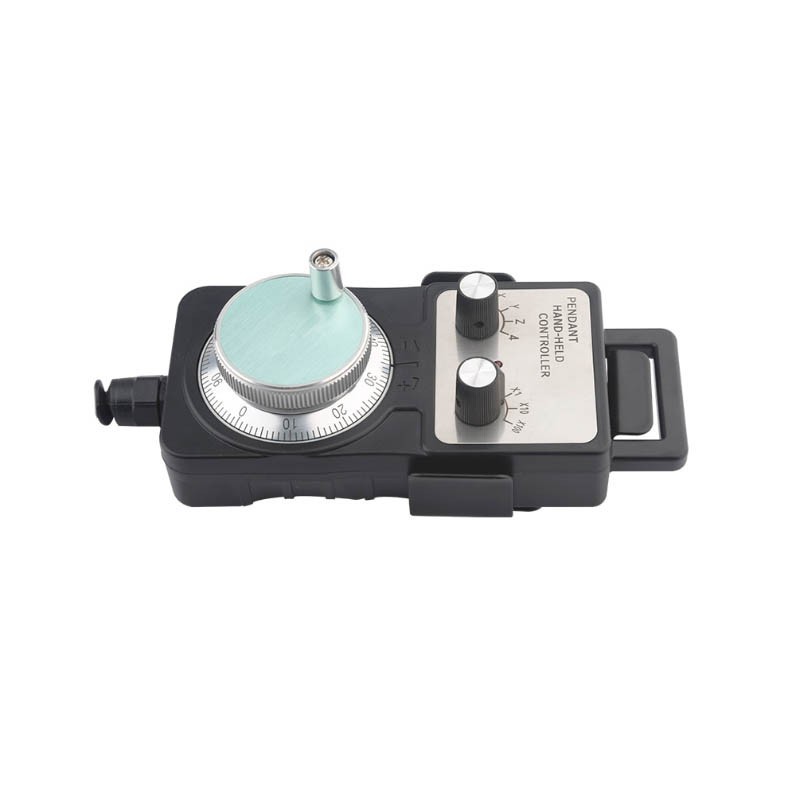

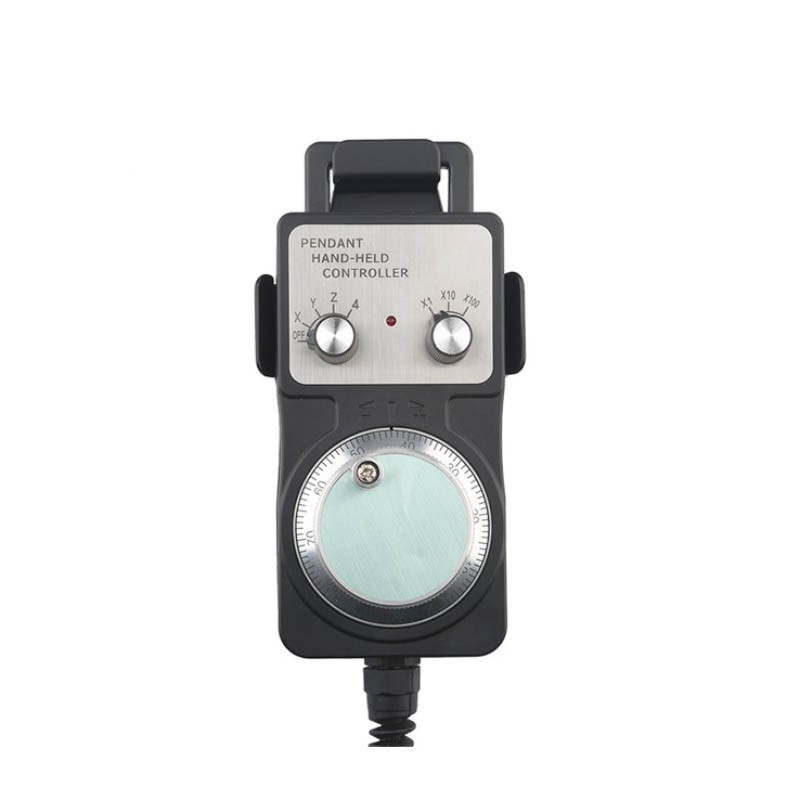

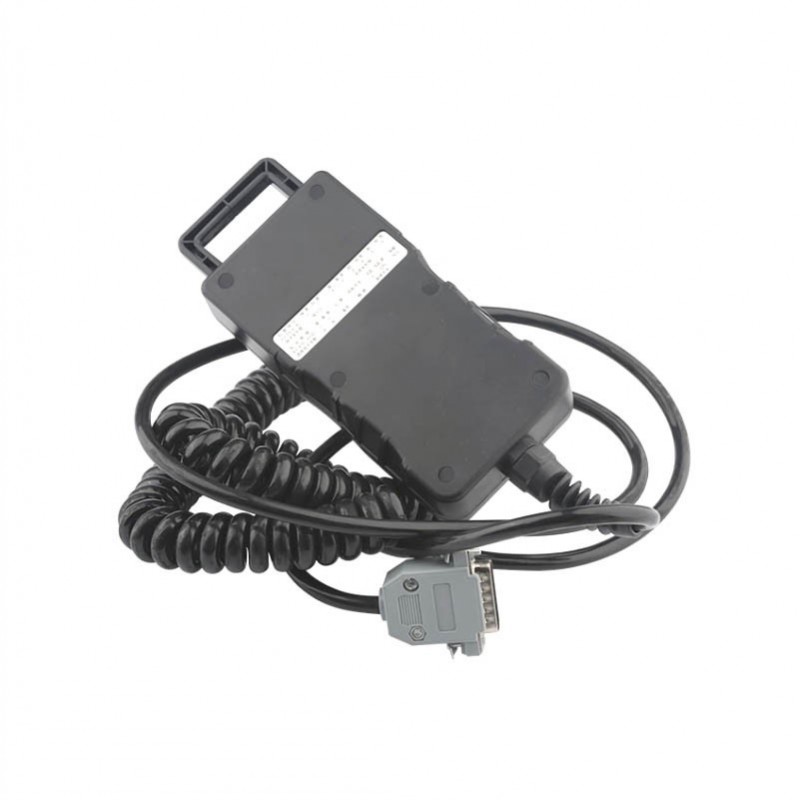

LGB-002-100 CNC Handwheel Manual Pulse Generator MPG Pendant for NC Studio

• Model LGB-002-100
• 5V 160mA 100PPR
• 4 Axis

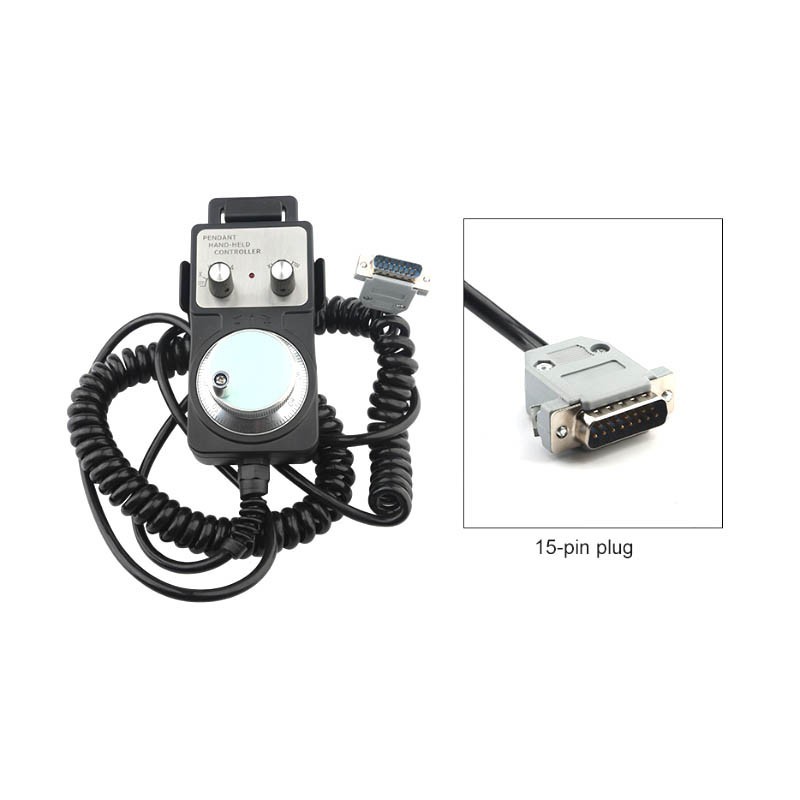

• 15 Pin Plug
• For NC Studio

Support NC Studio and other CNC systems:
- Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC, GSK, opened NC, KND, Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.

Guidelines:

1. Before wiring, carefully read the manual to prevent any interference with the handwheel's operation.
2. Ensure that the positive and negative poles of the encoder are functioning properly and not burn due to excessive voltage. The voltage is typically 5V, while a single system like Mitsubishi uses 12V, and PLC uses 24V.
3. The COM point is the common point of the handwheel switch and must be connected to ensure that the switch works correctly.
4. Handwheel operation is sensitive to collisions and may be damaged if excessive force is used when rotating the code plate and switch. Therefore, use light force to avoid affecting the service life.
5. It is unnecessary to connect A- and B- signals if they are absent.
6. If Mitsubishi and PLC lack A- and B- signals, there is no need to connect these signals.
