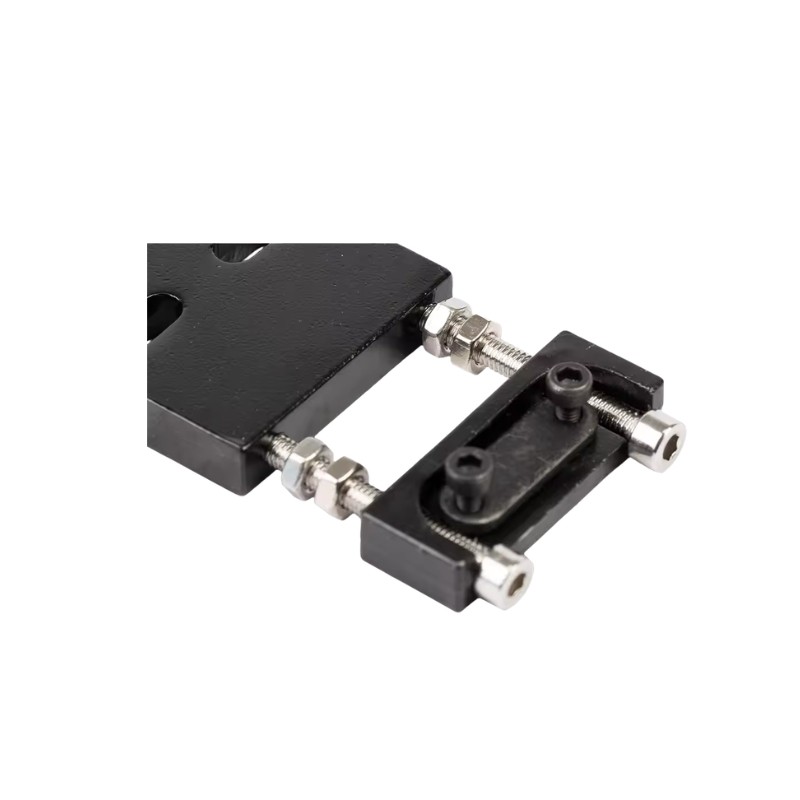

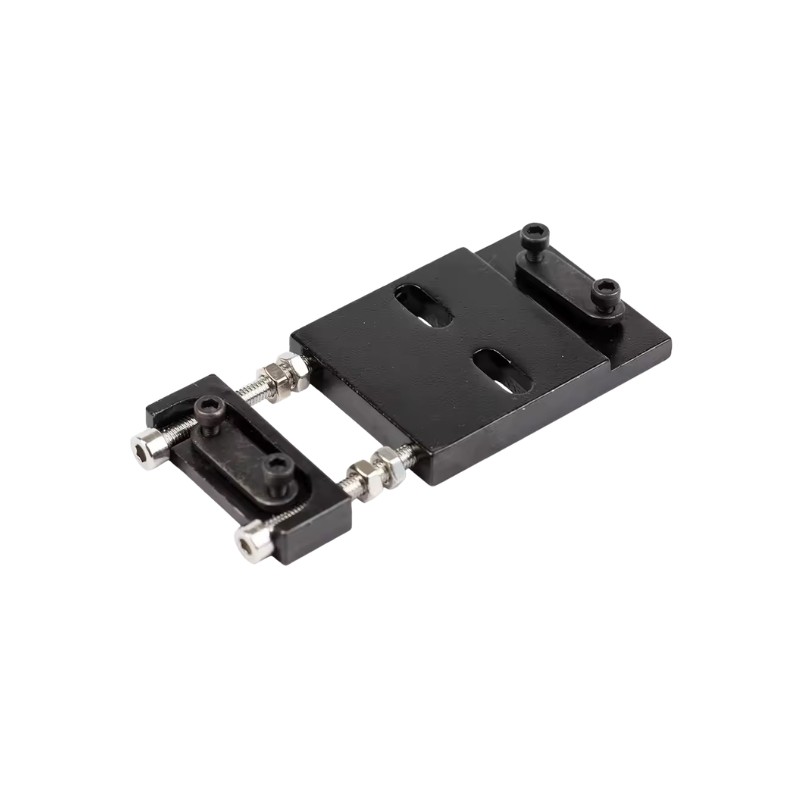

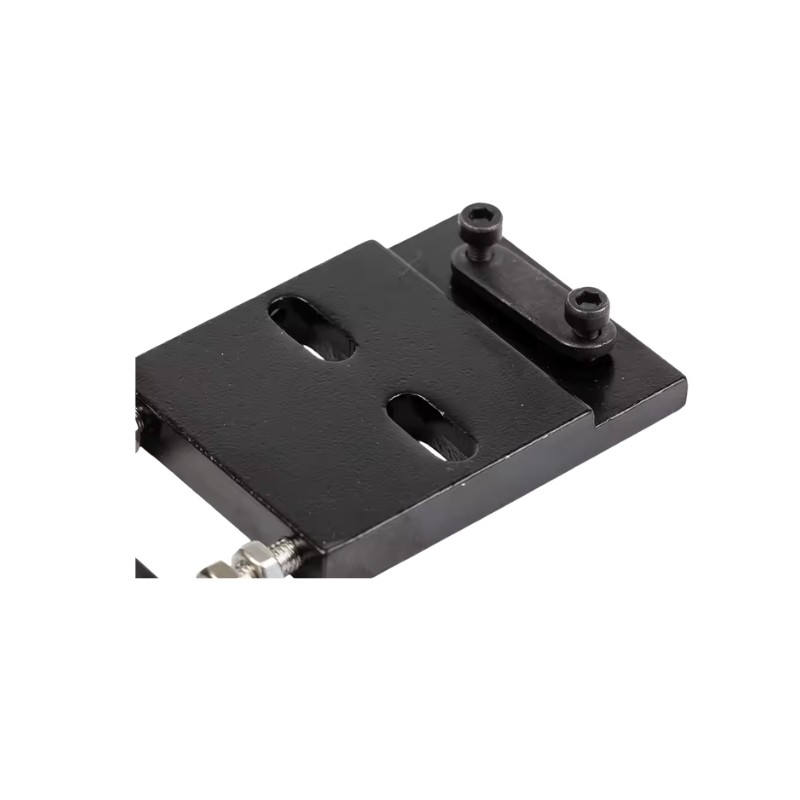

15mm Timing Belt Aluminum Clamp Belt Tensioner

The 15mm Timing Belt Aluminum Clamp Belt Tensioner is a compact mechanical accessory designed for securing and tensioning 15mm-wide timing belts in CNC machines, 3D printers, automation equipment, linear motion systems, and custom mechanical projects.

Made from aluminum, the clamp provides a rigid mounting point for the belt while allowing users to maintain suitable belt tension for smooth and accurate motion. Proper belt tension is important for reducing backlash, slipping, vibration, and positioning errors in belt-driven systems.

This component is useful for machine builders, repair technicians, hobbyists, and CNC users who need a simple and durable solution for fixing or tensioning a 15mm timing belt.

Key Features

• Designed for 15mm-wide timing belts

• Aluminum construction

• Suitable for belt clamping and tensioning

• Helps maintain correct belt tension

• Useful for reducing belt slip and backlash

• Compact design for CNC and automation systems

• Suitable for new machine builds and repairs

• Practical for linear motion and belt-driven mechanisms

Secure Belt Clamping

The clamp is designed to hold the timing belt firmly in place so that the belt remains fixed during machine movement.

A secure belt connection is important for maintaining consistent axis movement, especially in CNC machines, 3D printers, and automation systems where repeated positioning accuracy is required.

Helps Maintain Proper Belt Tension

Correct belt tension helps improve motion stability and reduces the chance of skipped movement, belt vibration, or loose positioning.

The tensioner can be used as part of a belt-driven mechanism to help users adjust or maintain the required tension according to the machine design.

Aluminum Construction

The aluminum body provides good rigidity while remaining lightweight.

This makes it suitable for moving assemblies, gantry systems, and machine axes where unnecessary weight should be minimized without sacrificing mechanical strength.

Suitable for CNC and Linear Motion Systems

The clamp can be used in many belt-driven applications including:

• CNC routers

• 3D printers

• Laser engraving machines

• Laser cutting machines

• Automation equipment

• XY positioning systems

• Linear motion stages

• Robotics

• Custom machinery

Useful for Repairs and Machine Upgrades

This timing belt clamp can be used when replacing a damaged belt mounting point, upgrading a machine, or building a new belt-driven motion system.

It is also useful for DIY CNC and automation projects where a compact belt termination or tensioning point is required.

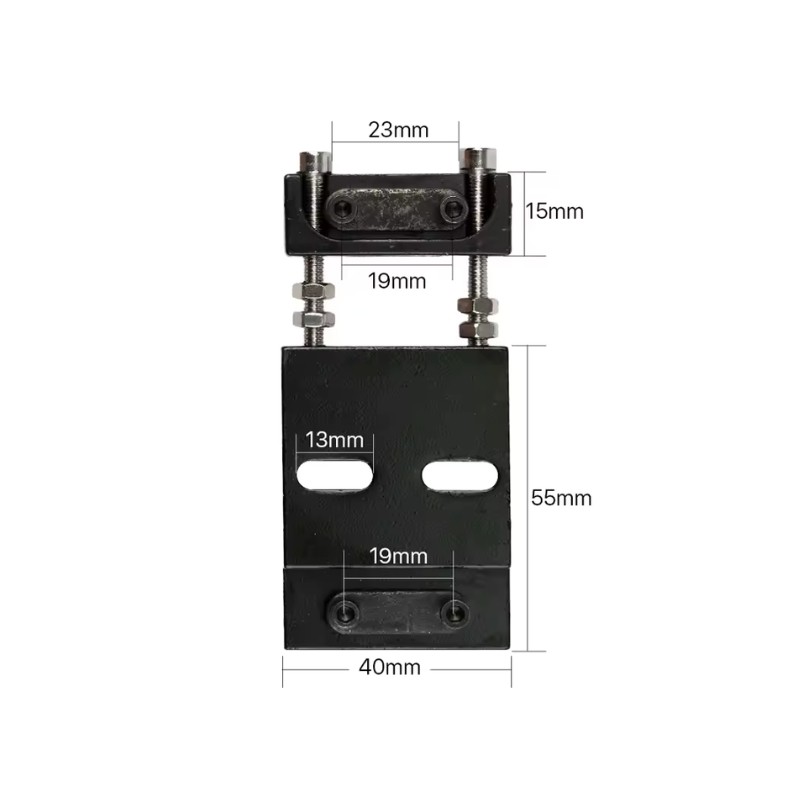

Technical Specifications

Applications

• CNC machine belt systems

• 3D printer motion systems

• Laser engraver axes

• Laser cutter motion systems

• Linear positioning systems

• Automation equipment

• Robotics

• Belt-driven gantries

• Machine repairs

• DIY mechanical projects

Compatibility

Suitable for 15mm-wide timing belts where the belt profile, tooth geometry, and mounting arrangement are compatible with the clamp.

Before installation, confirm:

• Belt width

• Belt tooth profile

• Mounting hole position

• Available installation space

• Required tensioning direction

• Machine frame compatibility

Usage Note

Do not overtighten the belt, as excessive tension can increase bearing load, motor load, and belt wear. Set the tension according to the machine design and make sure the clamp is securely mounted before operating the machine.
