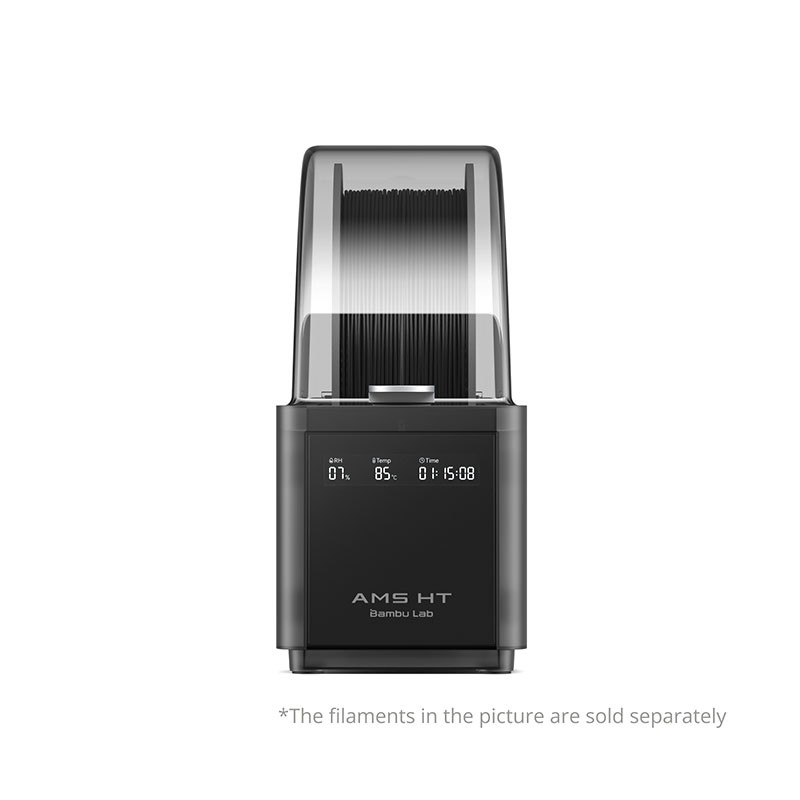

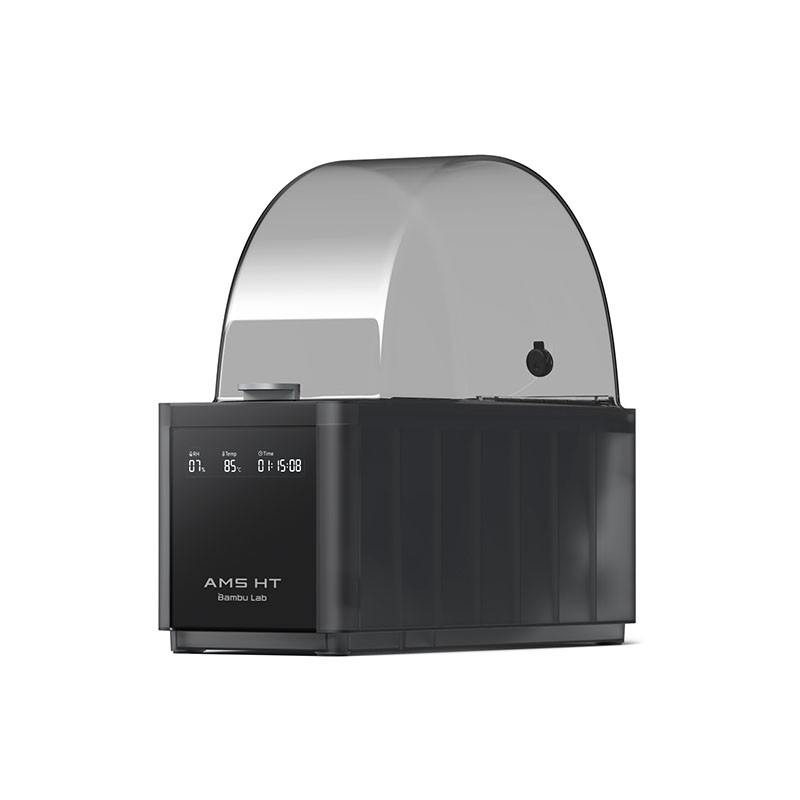

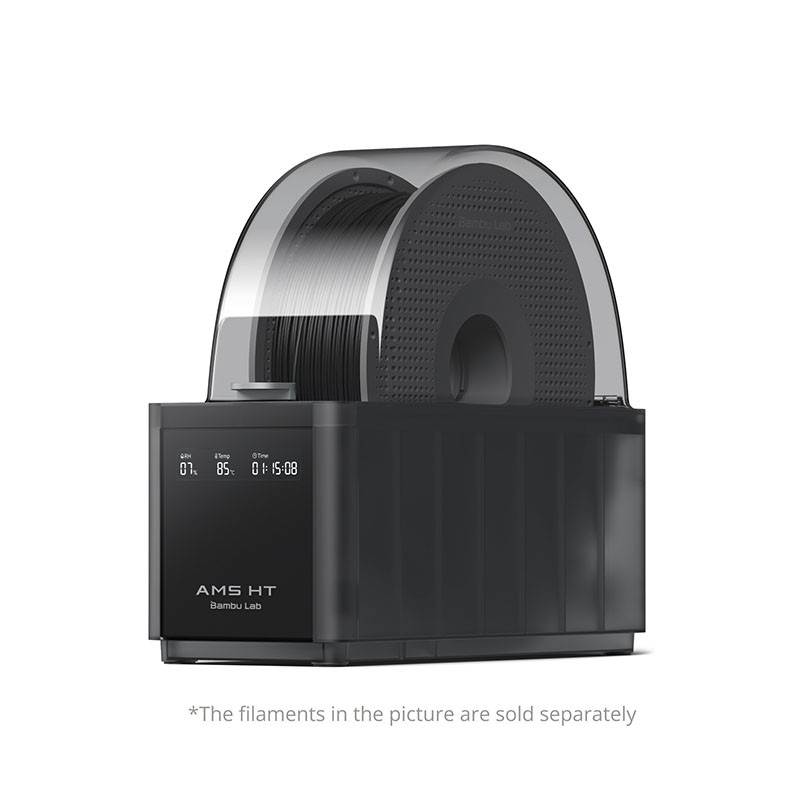

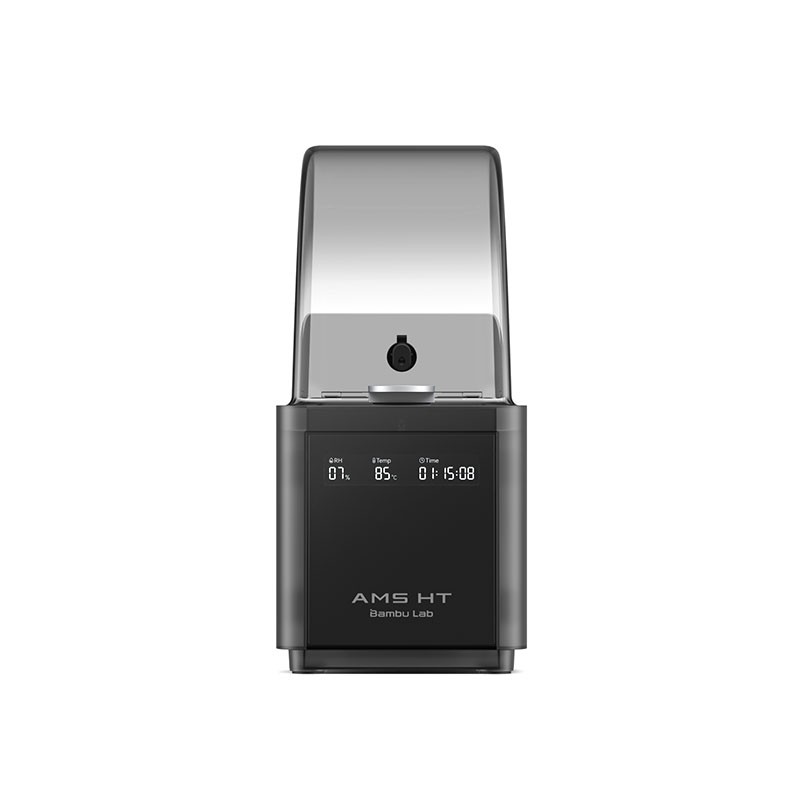

Bambu Lab AMS HT Automatic Material System High Temperature

Advanced Multi-Material Printing & Filament Drying System

The Bambu Lab AMS HT is engineered for technical materials and moisture-sensitive filaments, offering high-temperature drying, RFID filament sync, and seamless integration with Bambu Lab printers.

Key Features

• 85°C Active Drying
  Effectively dries moisture-sensitive materials like nylon, PC, and carbon-reinforced filaments.

• Multi-Material Support
  Supports up to 24-color printing when used with 4x AMS 2 Pro and 8x AMS HT modules.

• Smart Air-Tight Storage
  Prevents moisture exposure during storage with rotating drying and active air venting.

• Brushless Servo Feeding Motor
  Ensures precise filament feed with high reliability.

• RFID Auto Sync
  Automatically identifies Bambu filaments and adjusts drying settings accordingly.

• LED Display
  Clearly shows drying progress, temperature, and system status.

• Bypass Mode
  Print flexible or brittle materials directly without routing through the AMS.

Important Notice: For optimal performance, please exclusively utilize Bambu Lab filaments with the AMS unit. Usage of alternative filaments may result in occasional jamming or AMS damage, particularly during extensive multicolor printing, owing to differences in spool design and filament quality.

Compatibility Notes

A Series Users
Requires AMS HUB (SA013) to connect.

X1/P1 Series

• For 1x AMS HT: PTFE tube coupler (FAZ006), 4-pin cable (CAB002-N), and Filament Buffer (SA003) are needed.

• For multiple AMS: Add AMS HUB (SA002-N).

P2 Series

• 1–2 AMS: Needs Filament Buffer - P2S (SA011) + Bambu Bus Cable (CAB035).

• 3+ AMS: Add 4-in-1 PTFE Adapter (FAZ013-N).

H2S/H2D/H2C Users
Connecting more than 1 or 2 AMS units also requires 4-in-1 PTFE Adapter (FAZ013-N).

Specifications

• Size: 114 × 280 × 245 mm

• Weight: 1210 g

• Material: PC/PA (UL 94 V-0 fire rated)

• Max Drying Temp: 85°C

• Power Output: 150 W

• Filament Diameter: 1.75 mm

• Supported Spool Size: Width 50–68 mm / Diameter 197–202 mm

• Voltage: 100–240V AC | 24V DC

In the Box

• 1x Bambu Lab AMS HT

• 1x Desiccant

• 2x PTFE Tubes

• 1x Bambu Bus Cable (6-pin)

• 1x Power Cable

Note: Filament not included.
